Geometry

Overview

  • The geometry is defined in geom/ folder. In this folder there two main folders and an importan text file.

  • The worlds/ folder contains .geom files that defines the world where the simulation is performed.

  • The folder elementsInWorld/ contains .geom files defining Geant4’s solids which can be positioned in the world.

  • The file MyMaterials.txt defines the materials that can be used in the simulation.

Warning

Make sure to define your materials in MyMaterials.txt or check if it exists by default as a Geant4 material.

_images/setup.jpeg

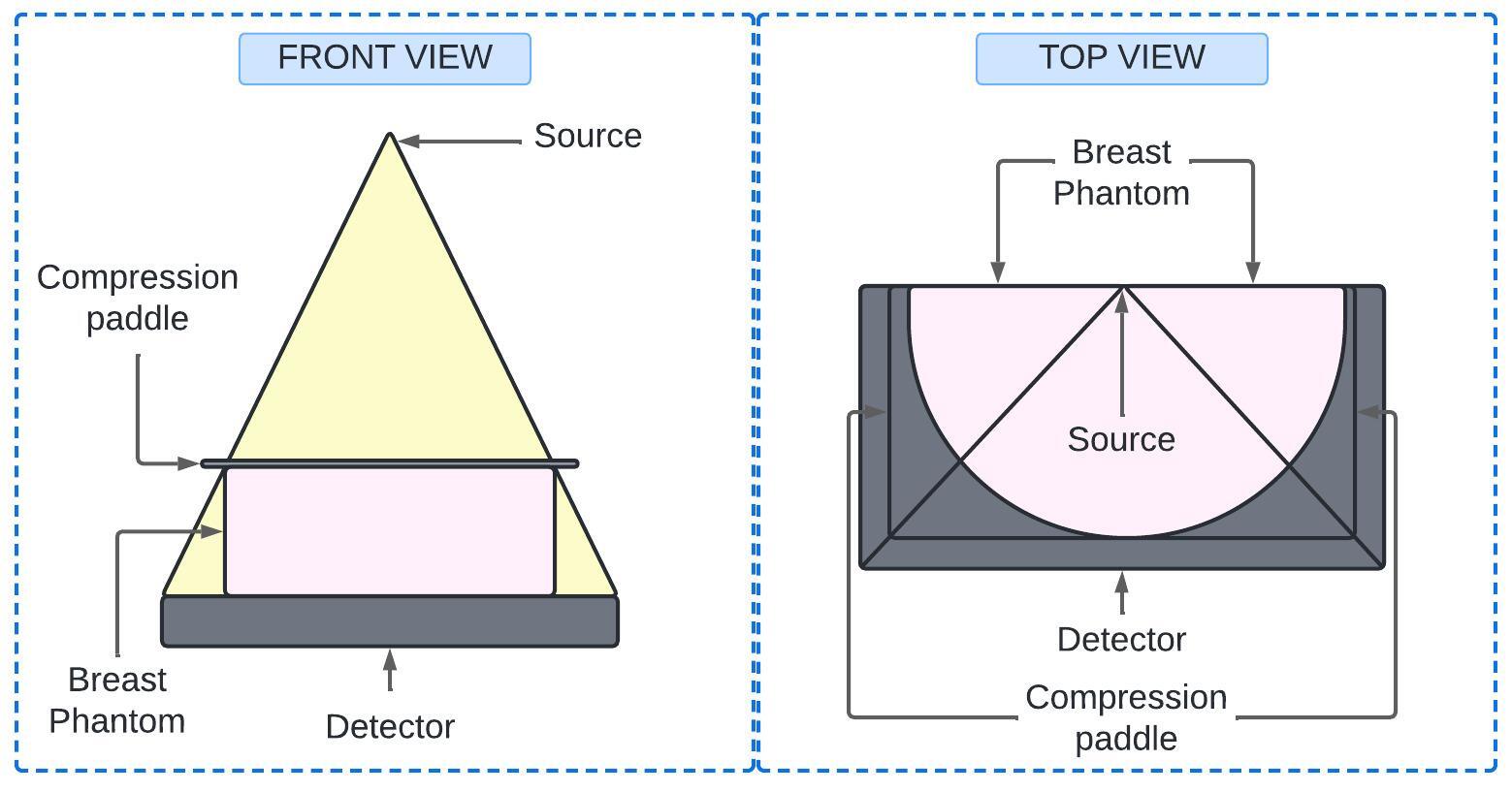

Setup of the simulation.
